PVS-14C Advanced Tactical Night Vision Monocular

From $3,520.00

Skip to product information
1 of 11
Image Intensifier Tube Selection

Regular price $3,520.00
Sale price $3,520.00 Regular price
Shipping calculated at checkout.

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

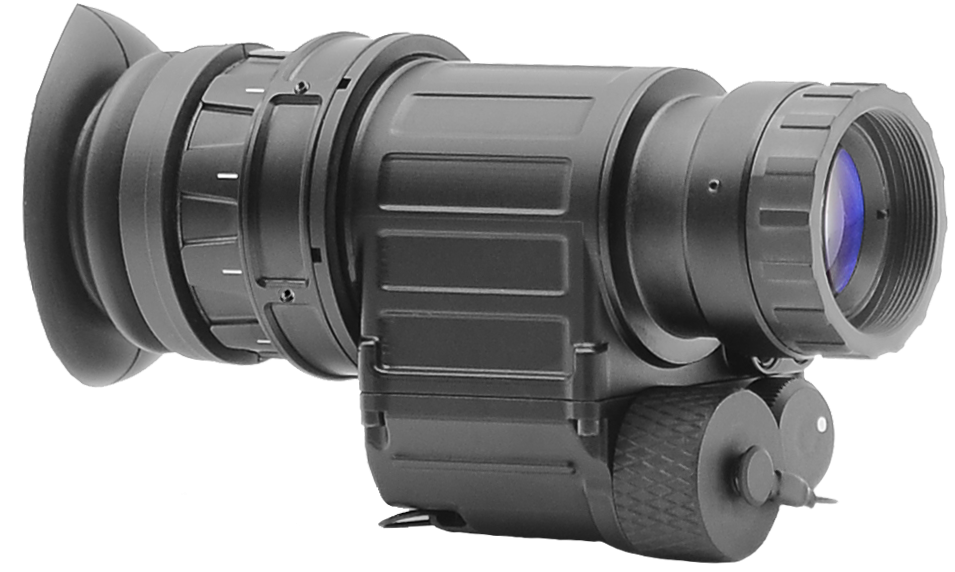

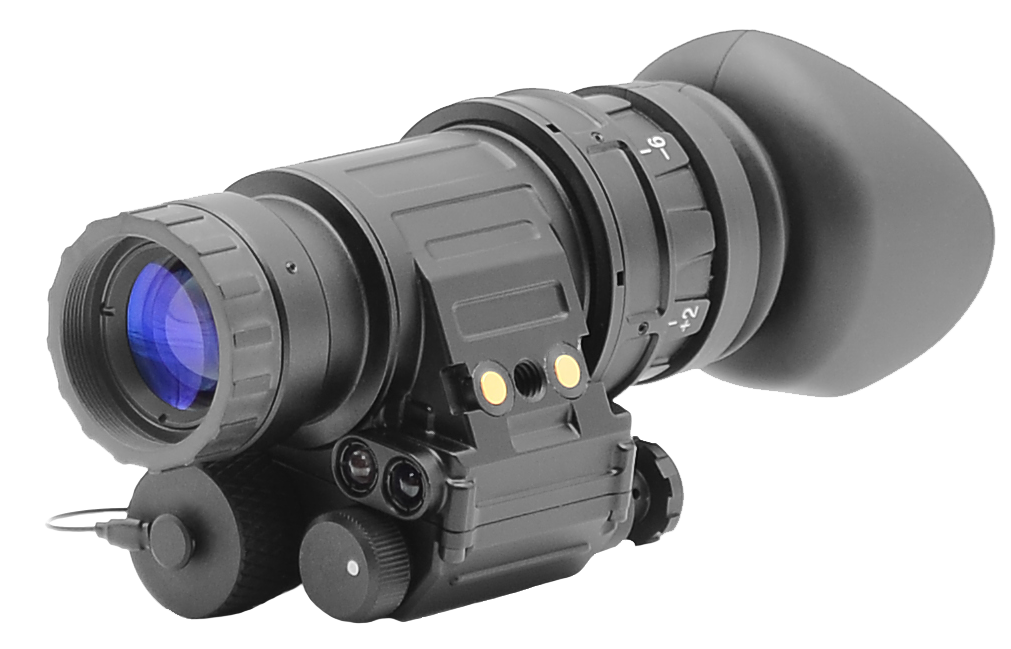

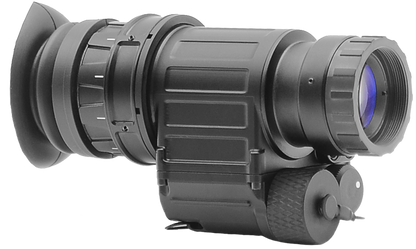

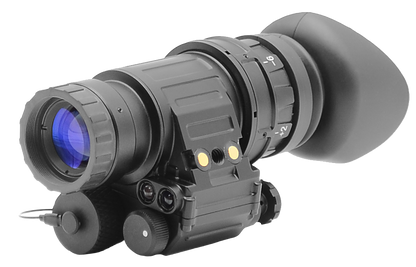

GSCI Advanced Photonics has proudly designed and built the PVS-14C, an advanced version of the traditional night vision monocular system. It's widely used for various tasks and operations and is the result of our newest technological advancements, feedback from professional users, and 30+ years of GSCI's engineering experience.

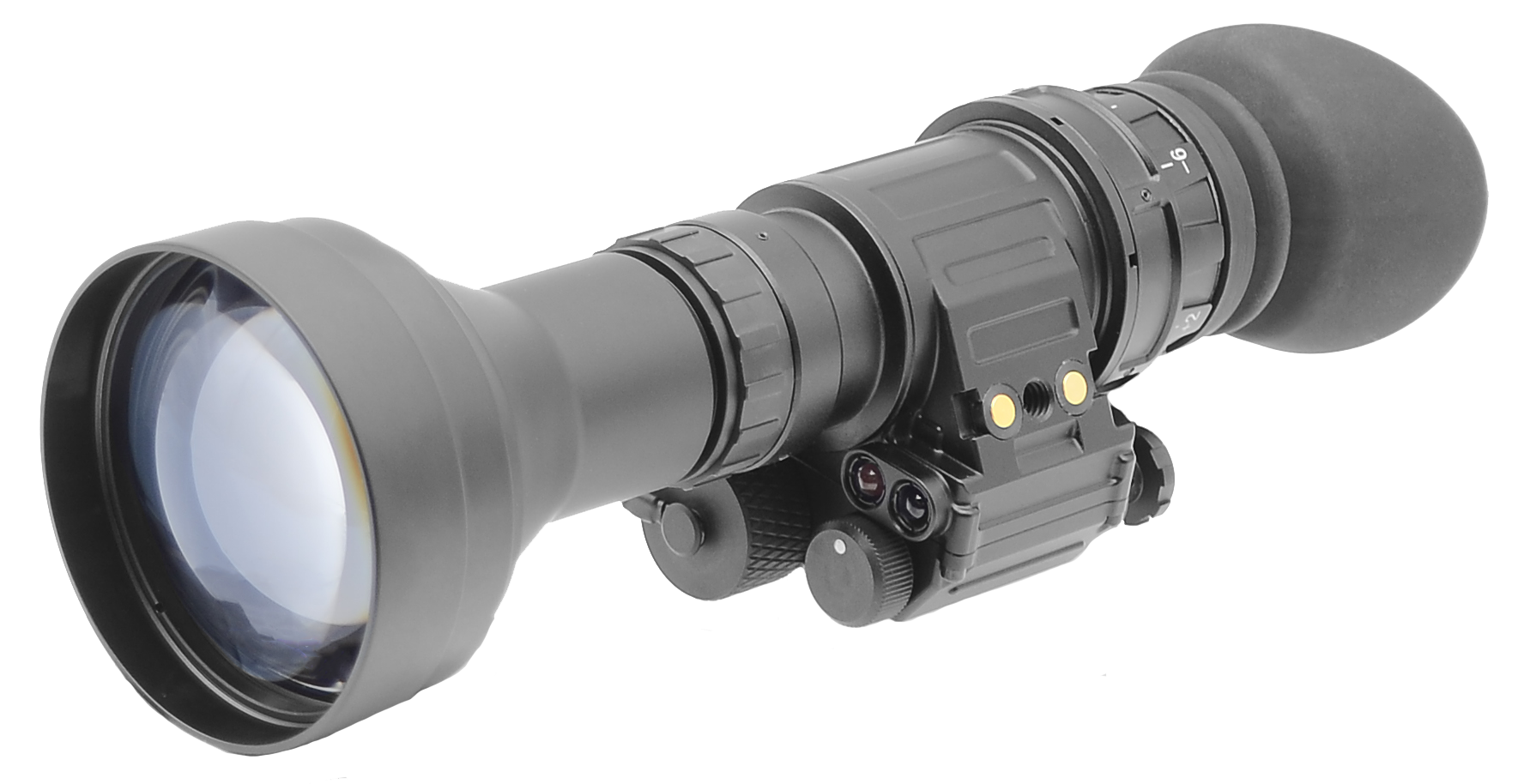

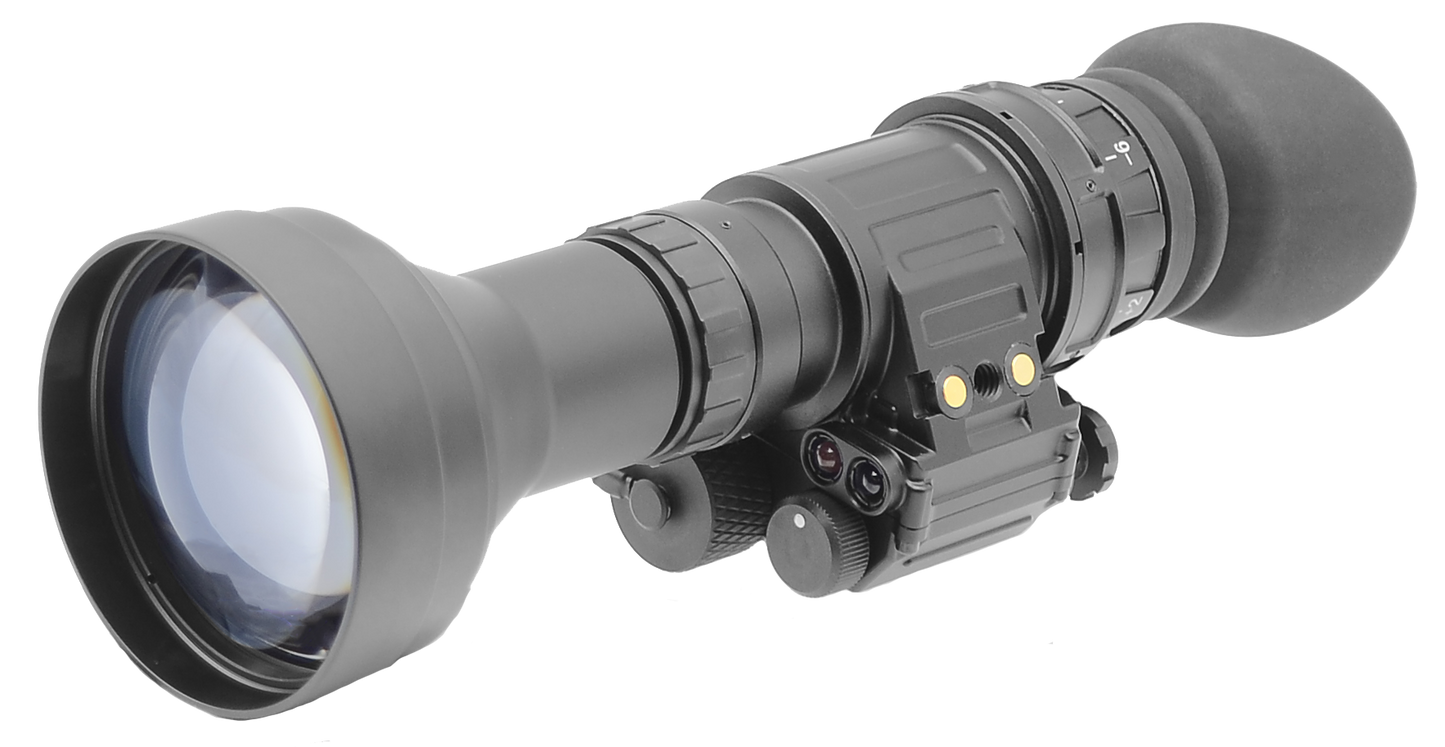

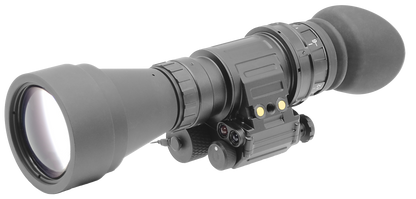

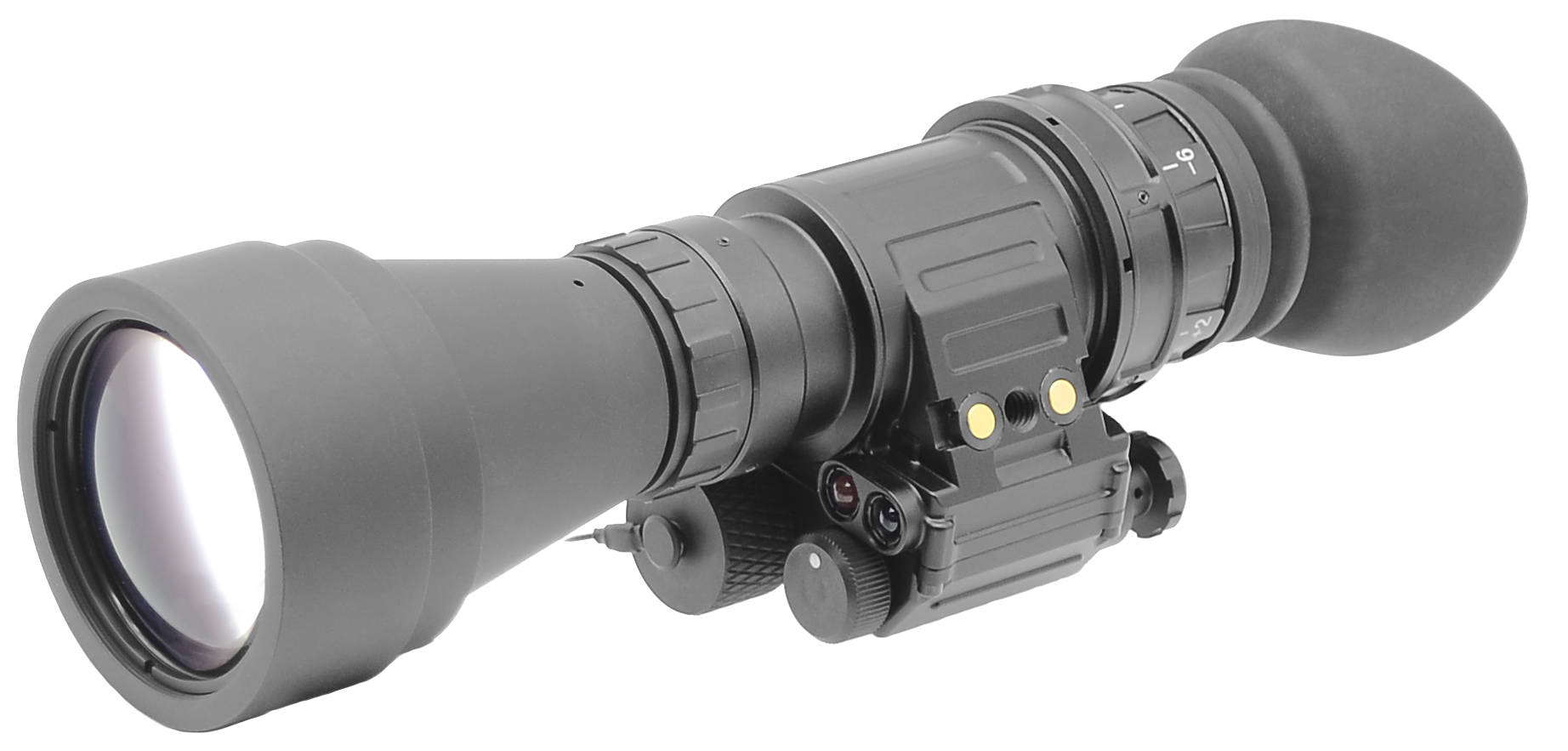

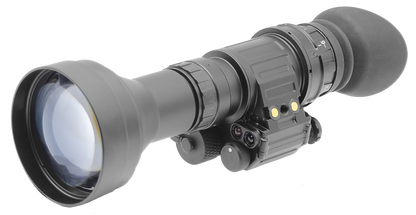

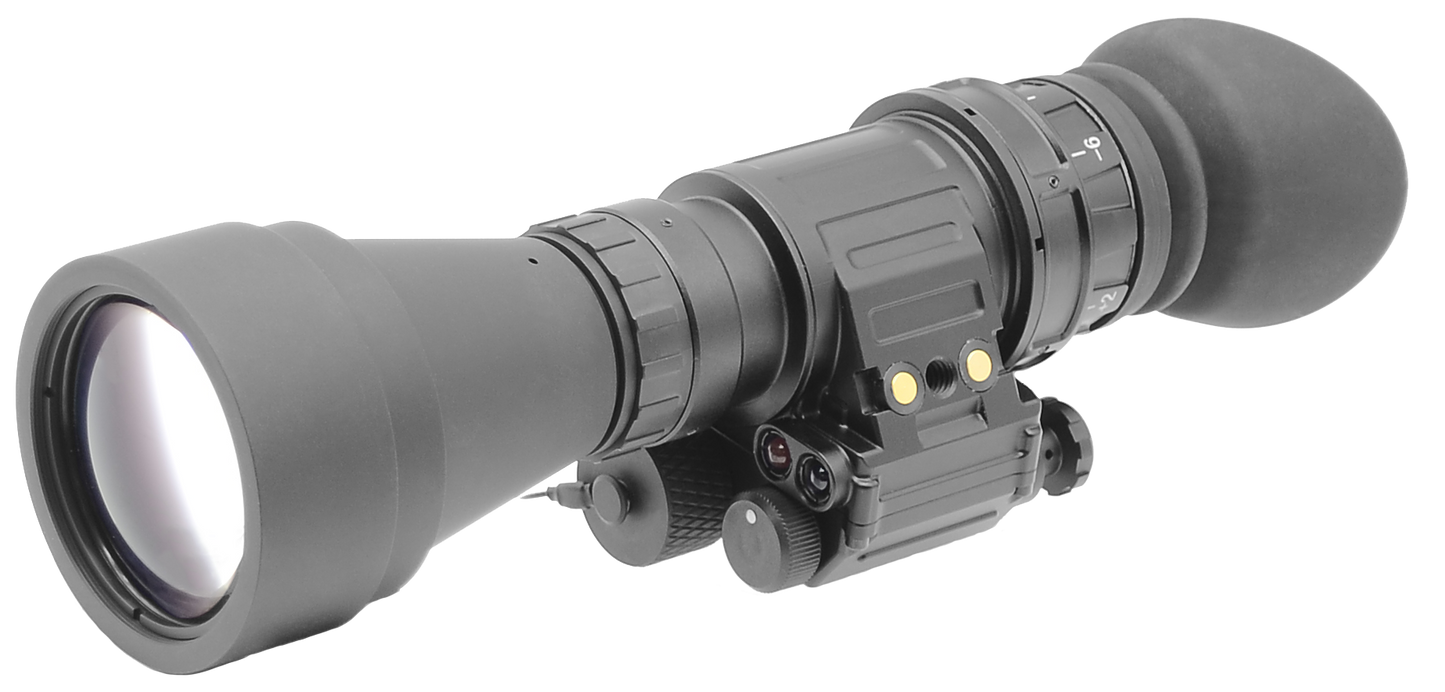

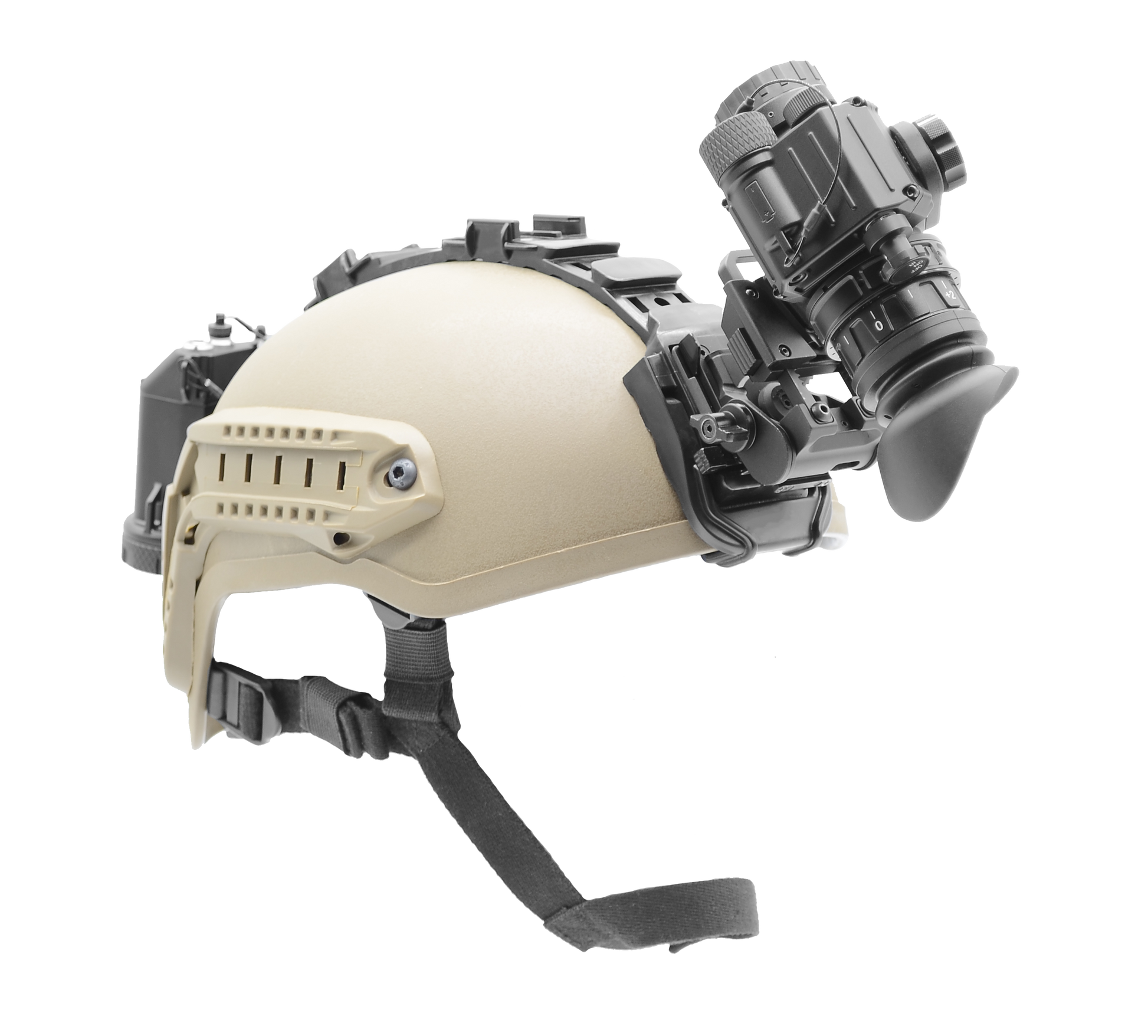

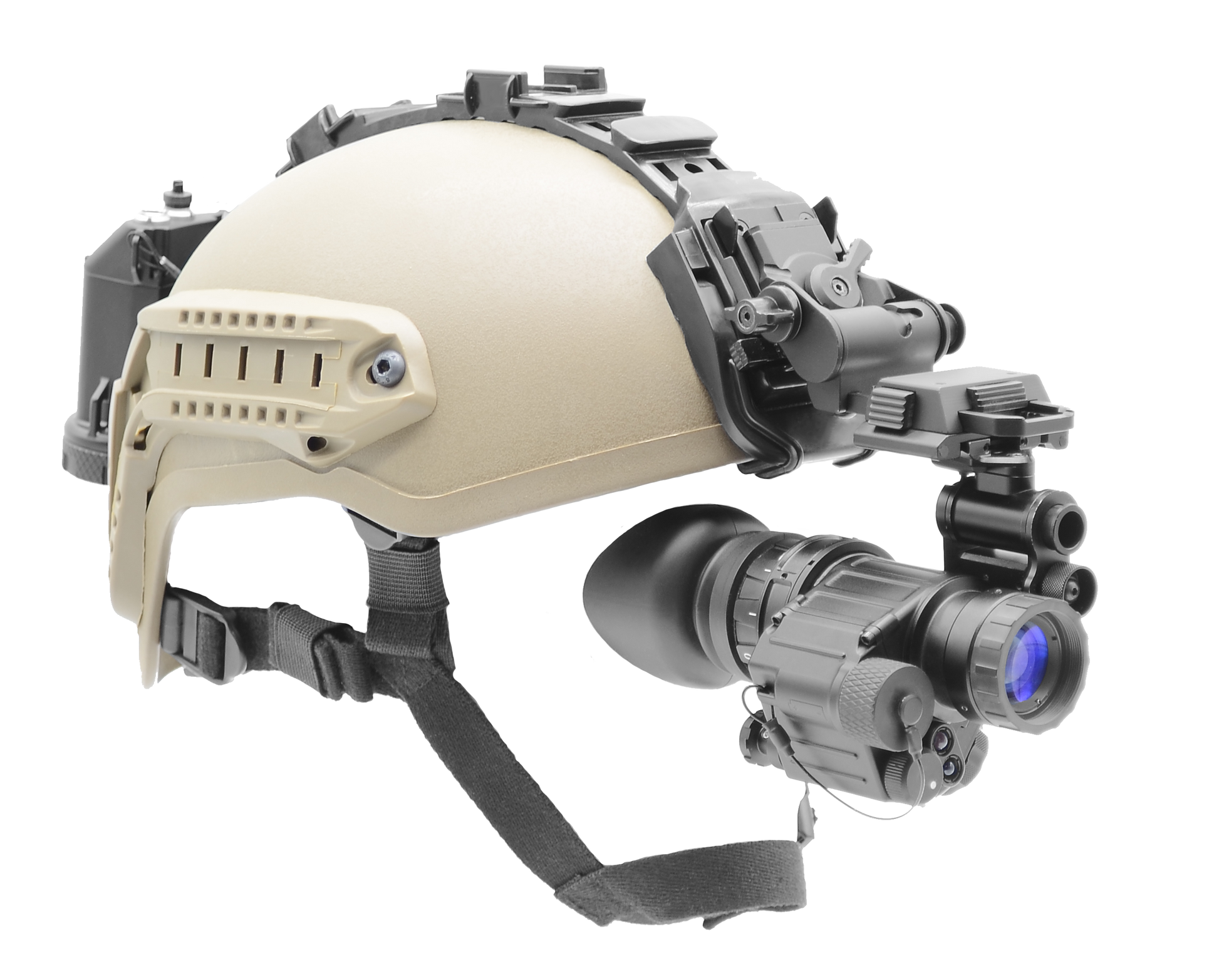

The PVS-14C works excellent in both urban/close-quarters areas, as well as remote rural areas with challenging terrain and obstructions - making it a multi-role device you can use as a hand-held device, tripod mounted, headgear or helmet-mounted hands-free monocular, or as a stand-alone weapon-mounted system. You also have the choice of equipping it with 3x or 5x lenses for extended range observation. Plus, you can connect it to a GSCI MVP-240 battery pack or other portable power sources thanks to the optional external power port. Manual gain control is also available to give you maximum viewing comfort with minimal strain on your eye.


TECHNICAL DATA

Optical Magnification

1X

Objective Lens

27mm, f/1.2

Field Of View ‡‡

40°

Focusing Range

0.25m .. Infinity

Diopter Adjustment Range

-6 .. +2

Built-In IR Illuminator

Yes: 950 nm

IR-On Indicator

Yes: concealed into FOV

Manual Gain Control

Yes: Optional

3-Position Switch

Yes: Off / On / IR

Bright Light Protection

Yes

Bright Light Sensor

Built-In

Low Battery Indicator

Yes: concealed into FOV

Stow Safety Feature

Yes

Flip-Up-Off Feature

Yes

Power Source *

1pc AA / 1pc CR123 / MVP-240

External Power Port

Optional: 4VDC .. 15VDC

Battery Life on 1x AA / 1x CR123

40 Hours

Battery Life on MVP-240

240 Hours

Environmental Protection

Waterproof

Dimensions

109x62x53mm

Weight **

230 grams

Operating Temperature

-40°C .. +50°C

Made In Canada

ITAR-Free

Specifications are presented for optical-electronic-mechanic assemblies only and do not include technical characteristics of image intensifier tubes.

‡‡ Field Of View (FOV) values are valid if the system is equipped with an 18mm Image Intensifier Tube

* Batteries not included

** Weight of the unit excludes an IIT due to its weight variations. Typical weight of an IIT is between 70 and 85 grams as per IIT manufacturers' specifications.

Important Information

Manufactured to the highest standard, this is a military-grade optic with advanced features.

Contact VIew Finders Plus for Custom Configuration Options & Pricing

* Stock is subject to current availability from GCSI. All units come with a 7 Year Limited Warranty.

** Variety of system configurations available for this optic other than those outlined/listed within the attached descriptions (see above link).

*** This product is a highly-customized special order item and requires 4-6 weeks for fulfilment. Fast and simplified export regulations may apply. Any weapons mounted options will require and export license process which is expedited via View Finders Plus and GCSI directly.

Export Restrictions
